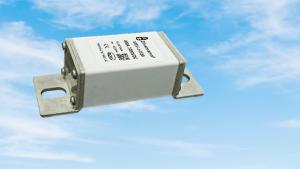

Fast Acting High Voltage DC Fuse For EV Charger Energy Storage System

Brand Name : Dissmann

Model Number : MEV-J-C20

Certification : TUV/CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : TT/LC

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Rated Current : 350A-500A

Rated Voltage : DC/AC1000V

Breaking Capacity : DC50KA

Standard : UL248-13、ISO8820、JASO-D622、IEC60269

Type Protection : aR

Application : electric vehicle drive power system, power conversion system

Time Constant : ≤DC50KA

Contact Now

European standard MEV fuse for power battery

Product basic information

Material

Body :Ceramic

Caps :Copper alloy

Terminal : Copper alloy
Characteristic

electric vehicle drive power system, power conversion system, energy storage
Interrupting Rating DC50KA at 1000VDC/AC
Ampere Raing 100A-315A
Voltage ( DC) 1000VDC
Voltage(AC) 1000VAC
Permissible Conditions of Use -40℃～70℃
Green Mark RoHS
Safety Approvals TUV

Structure of the MEV fuse

The outside of the MEV fuse is composed of tube body and rivets. The inside is composed of quartz sand, melt, and water glass glue.

Dimension of the MEV fuse

Fast Acting High Voltage DC Fuse For EV Charger Energy Storage System

Model Rated Current 100%Voltage drop Installation method
(A) (mV)
MEV-J-C20-350 350A 183 Mounting Bolt M8 recommended torque 11N·m


Application of the MEV fuse

This series of products are square tube bolt-mounted quick fuses with small size and high breaking capacity. Applicable to a wide temperature range, can withstand high-intensity mechanical vibration and shock, temperature shock and strong chemical load, suitable for road vehicle industry applications, can be used as electric vehicle drive power system, power conversion system, energy storage and power batteries, energy storage capacitors , Short circuit and backup protection of inverter controller, charger, MSD, wire and other automotive components and equipment.

Model description

Fast Acting High Voltage DC Fuse For EV Charger Energy Storage System

TUV certificate of the MEV series fuse

Fast Acting High Voltage DC Fuse For EV Charger Energy Storage System

Dissmann®Factaory Display

Fast Acting High Voltage DC Fuse For EV Charger Energy Storage System

Dissmann® Fuse workshop display

Fast Acting High Voltage DC Fuse For EV Charger Energy Storage System

FAQ:

Question:How much short -circuit current can your products protect?

Answer:Our fuse is usually a short -circuit protection of more than 5 times the rated current.
