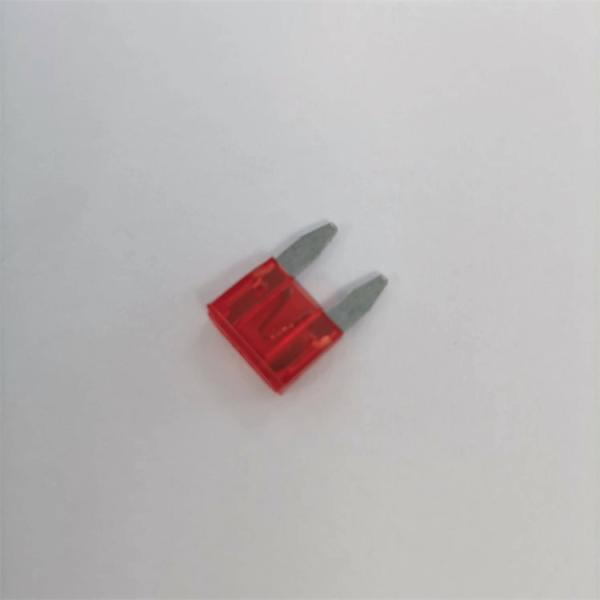

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

  • 1
  • 2

Brand Name : Dissmann

Model Number : DKN-A-10

Certification : UL248、ISO8820、RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Color : Red

Rated Voltage : DC32V

Rated Current : 10A

Type Protection : Fast-acting

Breaking Capacity : DC1000A

Size : Mini Automotive Blade Fuse

Contact Now

Dissmann® UL Certified DC32V 10A Automotive Blade Fuse Low Voltage Fuse Made in China

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

Specifications of the DKN-A series Automotive Blade Fuse:

1. Dimension of the automotive balde fuse:

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

DKN-A Series Automotive blade fuse

2. DKN-A series fuse model rated voltage is DC32V, it's classification according to rated current :

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop mV

Pigment

DKN-ADKN-A-222.8170(Gray)
DKN-A-339.3152(Violet)
DKN-A-4417120(Pink)
DKN-A-5524128(Tan)
DKN-A-7.57.566135(Brown)
DKN-A-101092108(Red)
DKN-A-151527098(Blue)
DKN-A-202038096(Yellow)
DKN-A-252562085(Clear)
DKN-A-3030112086(Green)

3.DKN-A series Automotive blade fuse Current Characteristic curve:

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

4.Performance criteria of the Automotive blade fuse

Test current item(A)

Current

Minimum time(s)

Maximum time(s)

110%2A-30A360000∞
135%2A-30A0.75600
200%2A-30A0.155.0
350%2A-30A0.080.5
600%2A-30A0.030.1

5.Dissmann® automotive blade fuse, include mini size,medium size,large size:

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

6.Other Fuses and fuse holders in our Factory:

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

8.Dissmann® fuse Factory Display:

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
